Holosun

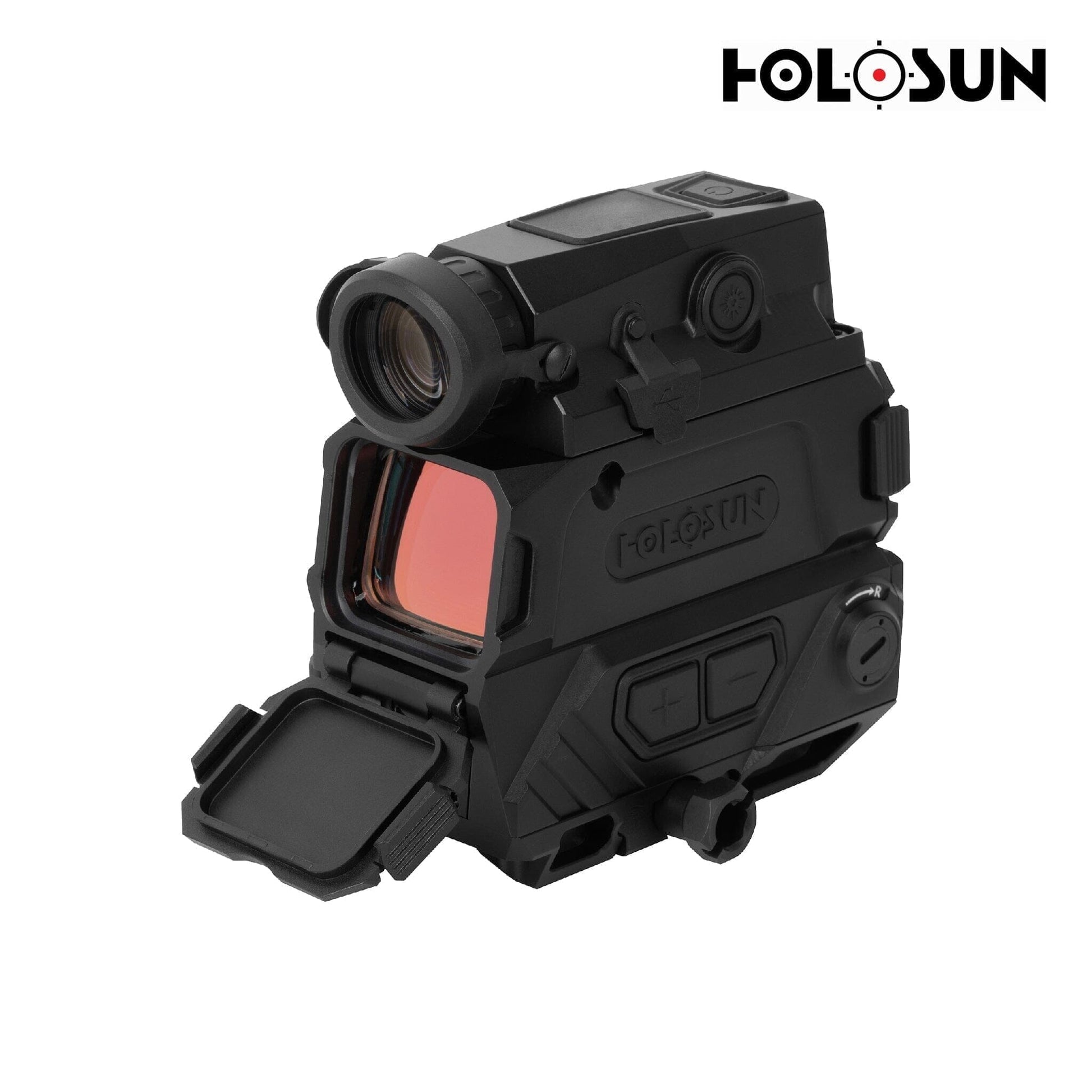

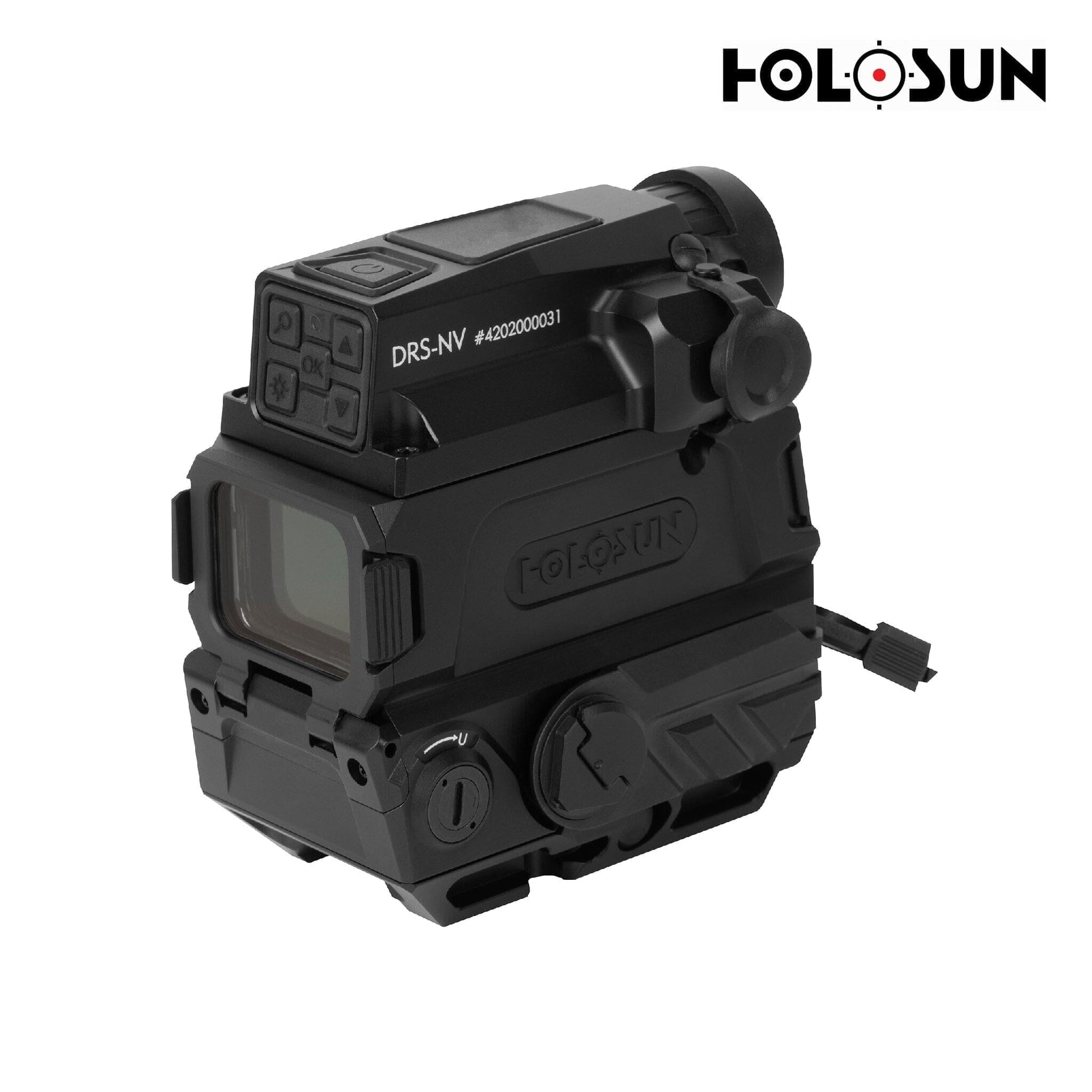

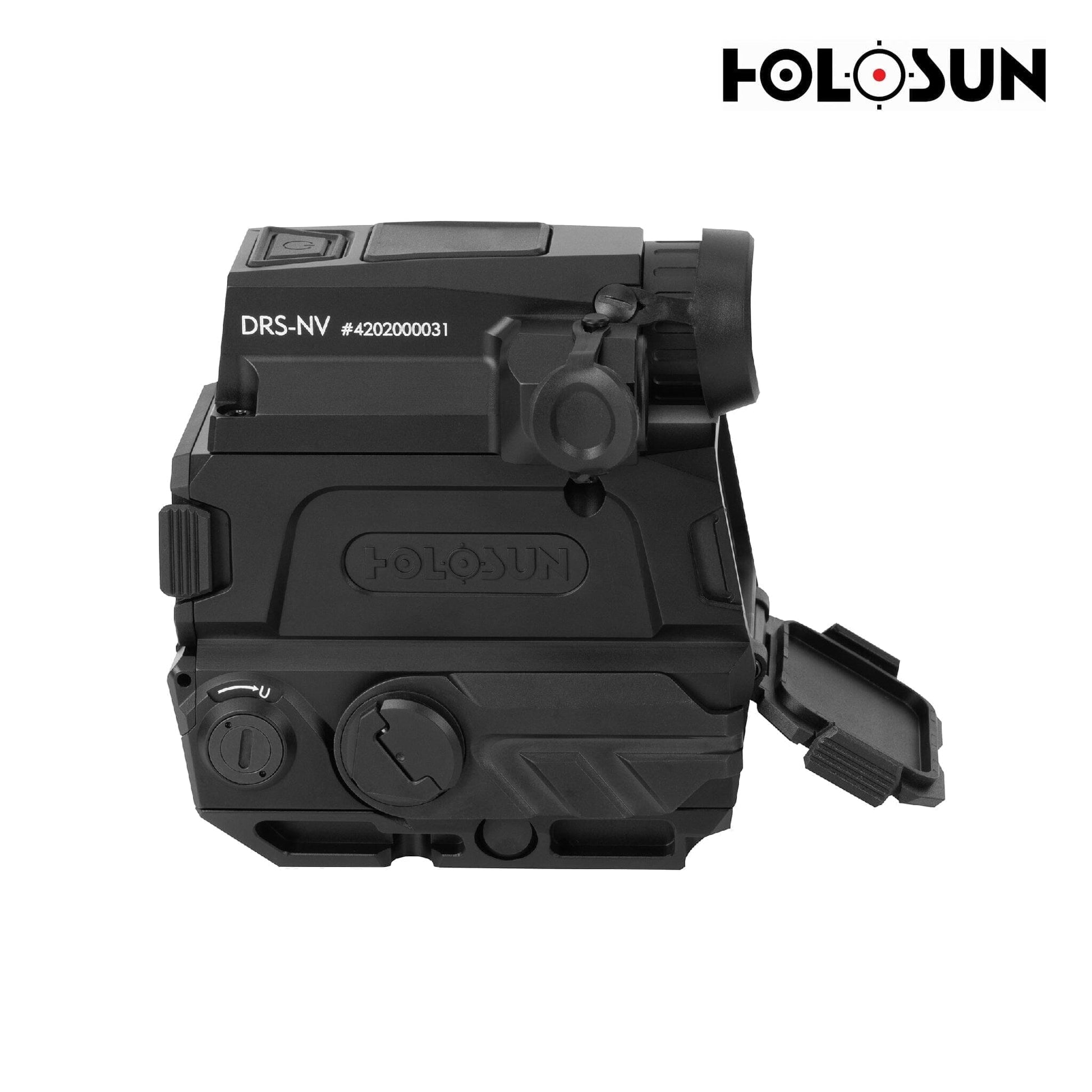

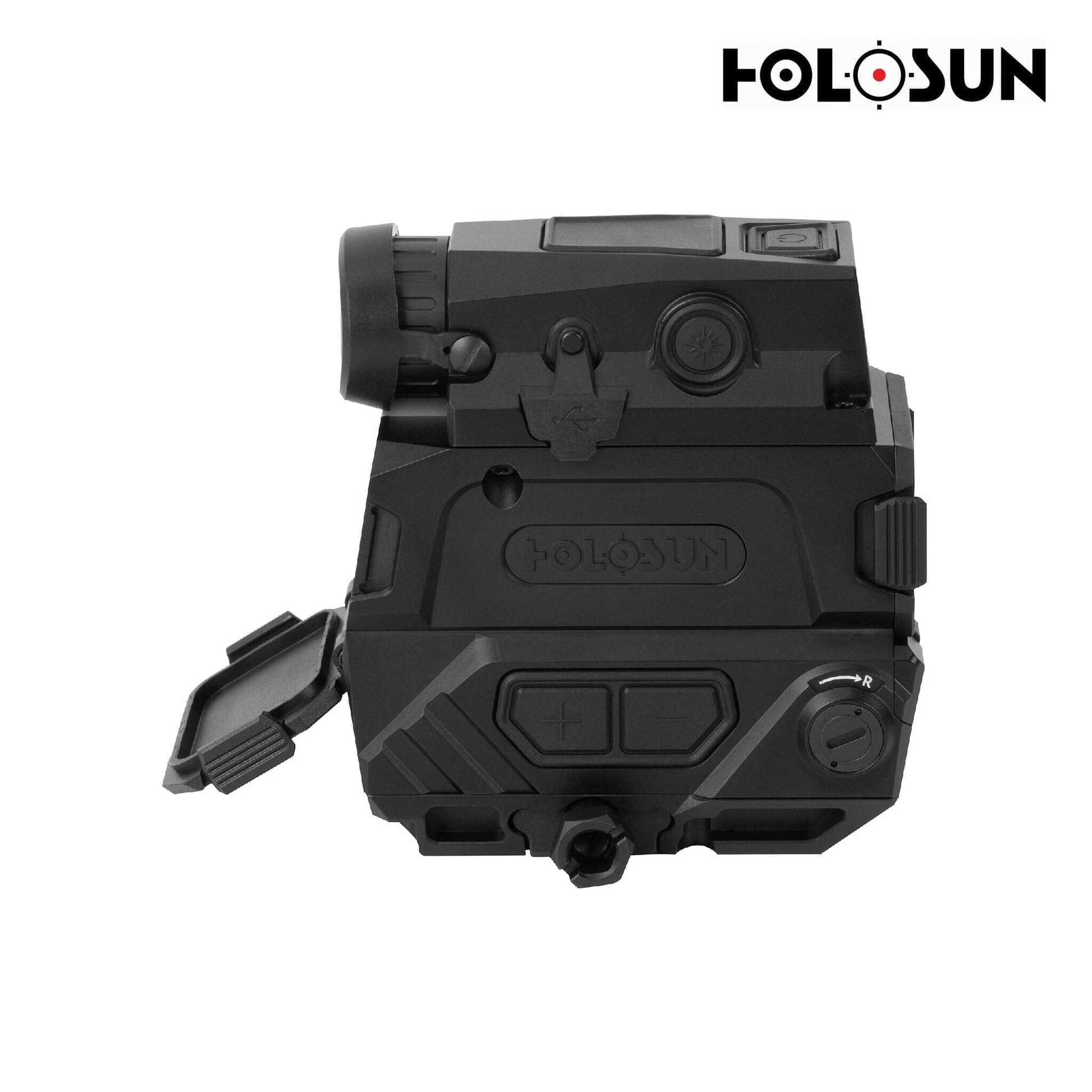

Holosun DRS-NV Digital Reflex Red Dot Sight
Holosun DRS-NV Digital Reflex Red Dot Sight
Couldn't load pickup availability
Holosun DRS-NV Digital Reflex Red Dot Sight
Features
- Fusion Thermal Overlay: Combines a 2 MOA red-dot reticle (65 MOA circle + dot / dot only / circle only) with a 1024 × 768 OLED digital night-vision sensor, refreshing at 60 FPS for smooth overlay in day or night modes.
- Digital Zoom: 1×, 2×, 4×, and 8× electronic zoom for enhanced target identification in low-light conditions.
- On-Board Video & Image Recording: Capture and store critical engagements directly to internal memory (no SD card required).
- Rechargeable Power System: Two 18350 Li-ion batteries deliver up to 6 hours of full-function runtime or 8 hours in observation mode; recharge in-unit via USB-C.
- Shake Awake® & Power-Save Modes: Motion-activated on/off with automatic shut-off after 10 minutes of inactivity to conserve battery.
- Rugged 7075-T6 Aluminium Body: Hard-coat anodised for corrosion resistance; sealed to IP67 for waterproofing to 1 m and dust-proof integrity.
- Tool-Less Picatinny Mount: Low-profile clamp with 11 mm nut installs quickly on any MIL-STD-1913 rail—no gunsmithing required.
- Unlimited Eye Relief & Parallax-Corrected Optics: True 1× sight picture with a large viewing window for rapid acquisition and consistent point-of-aim.
Holosun DRS-NV Digital Reflex Red Dot Sight – Technical Specifications
|
Specification |
Details |
|
Model / MPN |
DRS-NV |
|
SKU |
DRS-NV |
|
UPC |
810047072935 |
|
Digital Sensor Resolution |
1024 × 768 pixels @ 60 FPS |
|
Display Type |
OLED overlay |
|
Digital Zoom |
1×, 2×, 4×, 8× |
|
Reticle (MRS) |
65 MOA circle + 2 MOA dot / 2 MOA dot only / 65 MOA circle |
|
Illumination |
Red Super LED |
|
Brightness Settings |
8 daylight / 4 NV-compatible |
|
Power |
2 × 18350 rechargeable Li-ion batteries; USB-C charging; 6 hr full-function, 8 hr observe |
|
Shake Awake® |
Yes |
|
Optical Magnification |
1× |
|
Viewing Window |
0.98″ × 1.25″ (25 × 32 mm) |
|
Eye Relief |
Unlimited |
|
Parallax |
Corrected |
|
Mount Interface |
MIL-STD-1913 Picatinny; tool-less clamp with 11 mm nut |
|
Material |
CNC-machined 7075-T6 aluminum, hard-coat anodize |
|
Waterproof / Dustproof |
IP67 |
|
Weight |
18.5 oz (525 g) |
|
Overall Dimensions |
3.7″ × 2.2″ × 3.5″ (94 × 56 × 89 mm) |
|
Operating Temperature |
–20 °C to 60 °C |
|
Country of Origin |
China |
