Primary Arms SLx 3x MicroPrism Scope - Red ACSS Raptor 5.56/.308 Meter Reticle - Black
Primary Arms SLx 3x MicroPrism Scope - Red ACSS Raptor 5.56/.308 Meter Reticle - Black
Couldn't load pickup availability

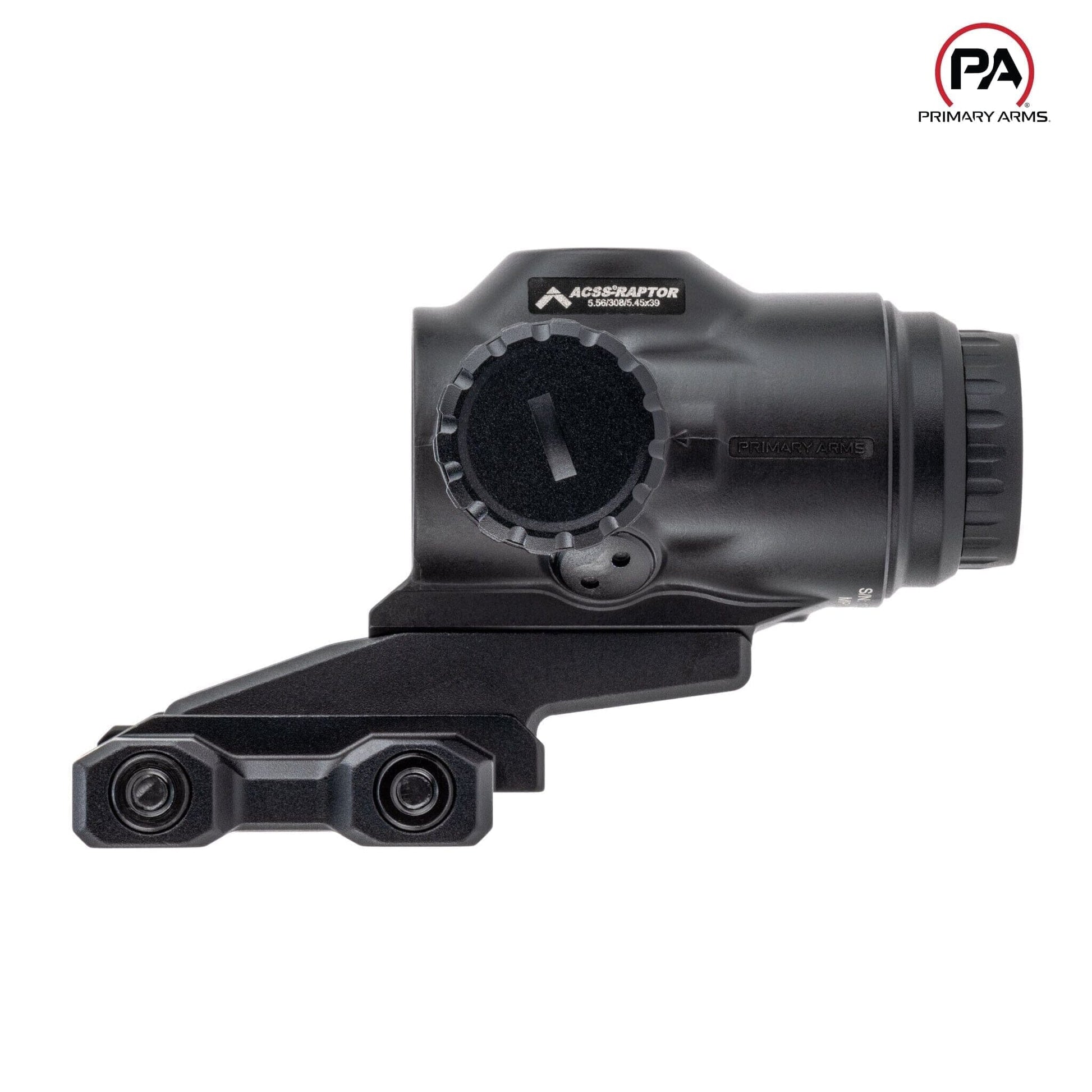

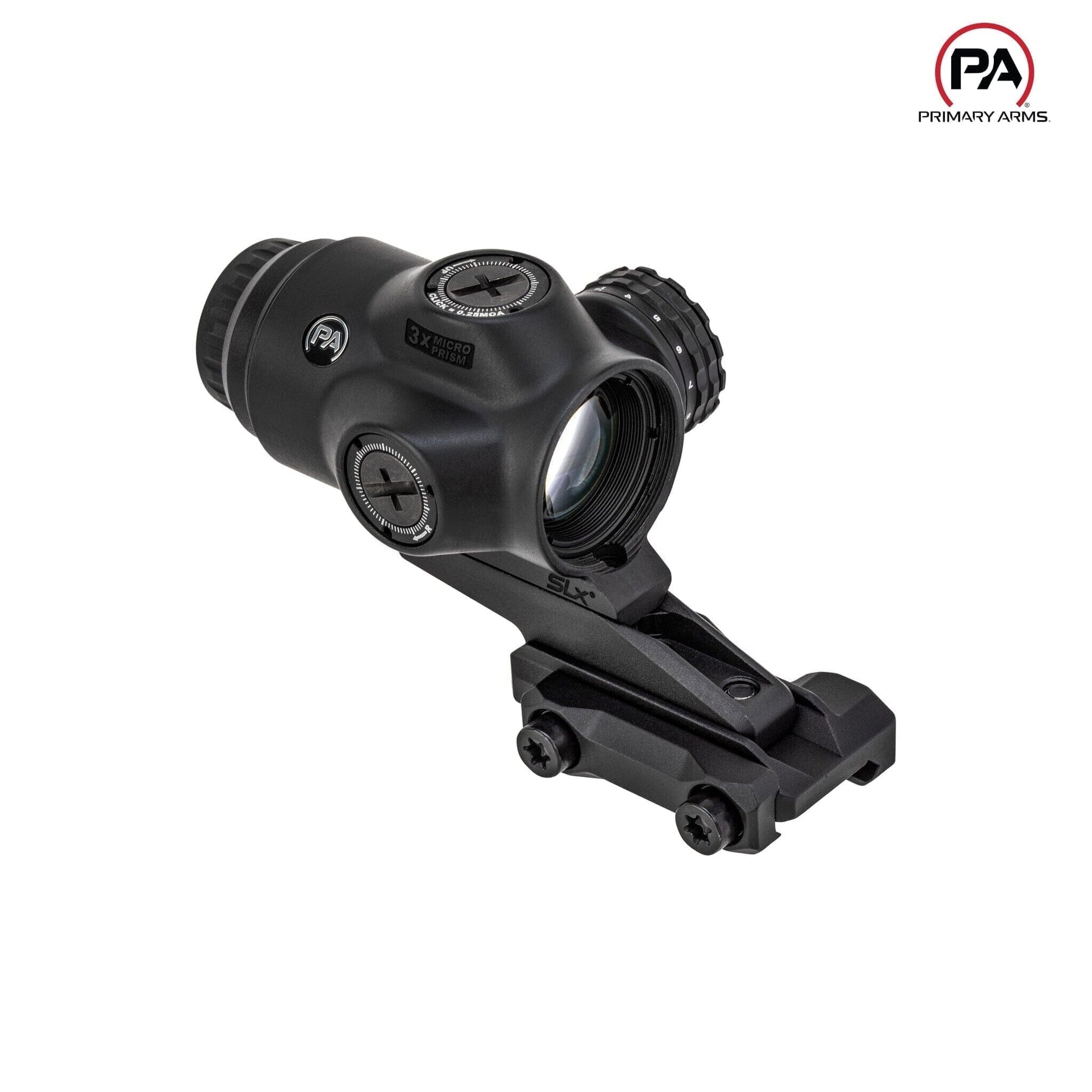

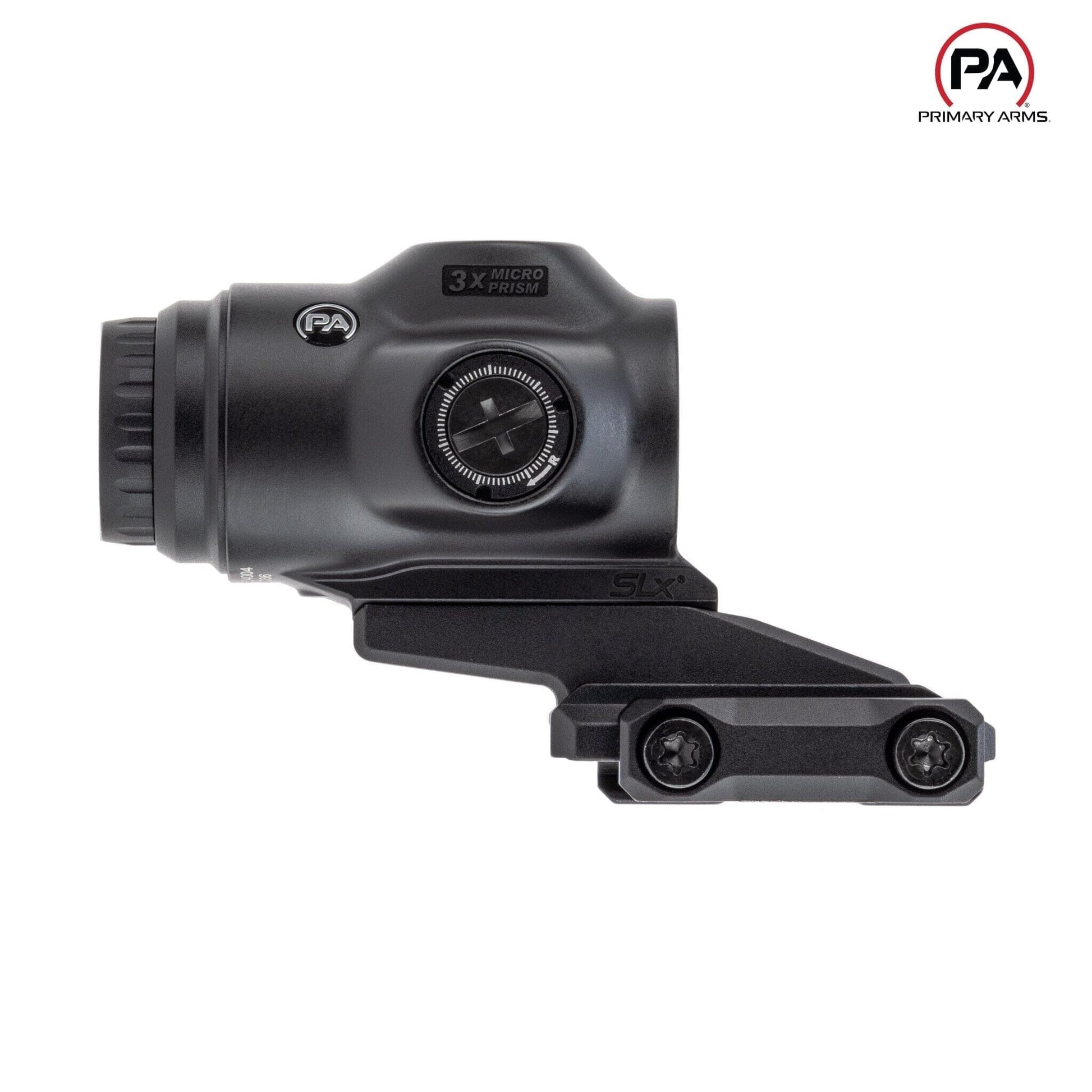

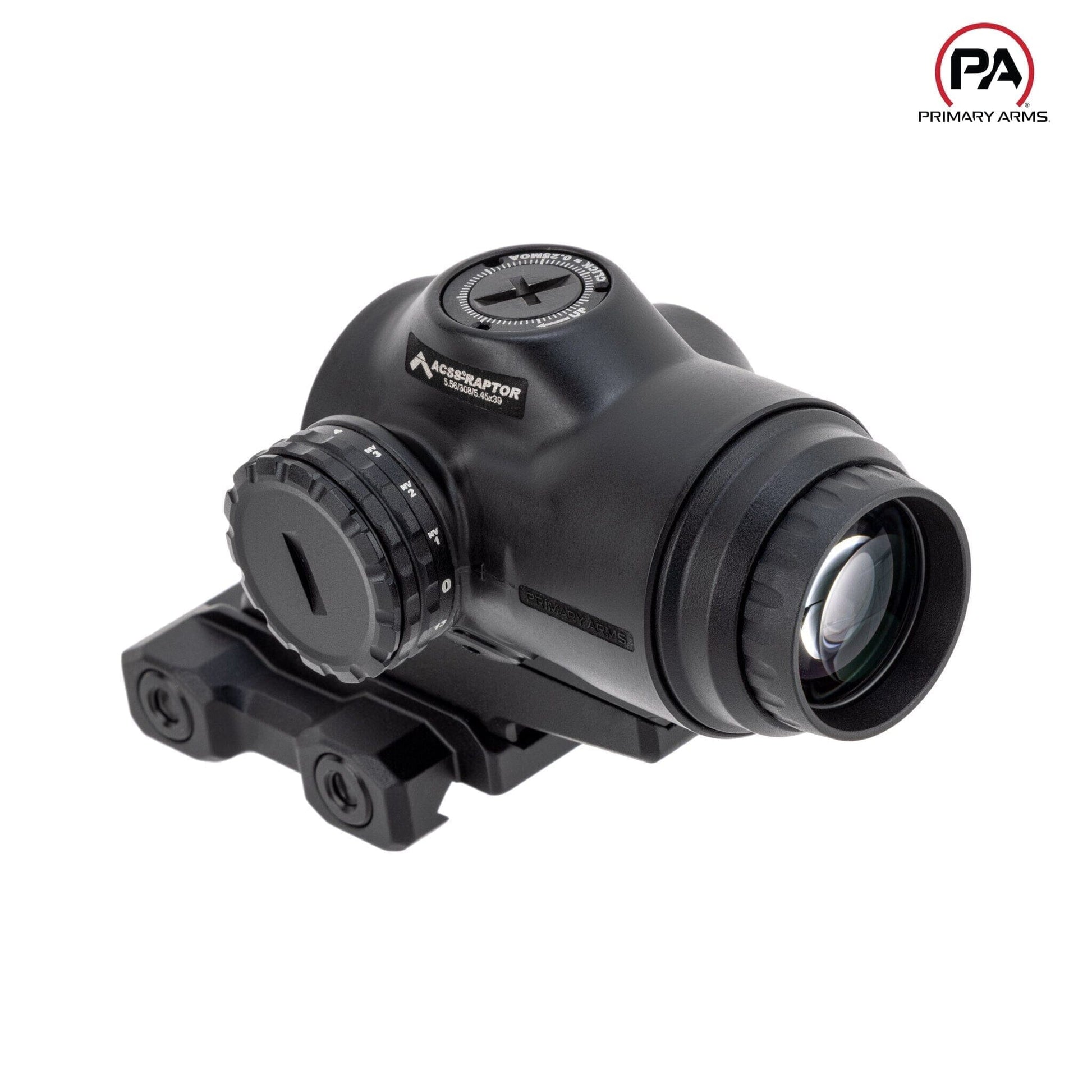

Primary Arms SLx 3× MicroPrism Scope - Red ACSS Raptor 5.56/.308 Meter Reticle - Black
Features

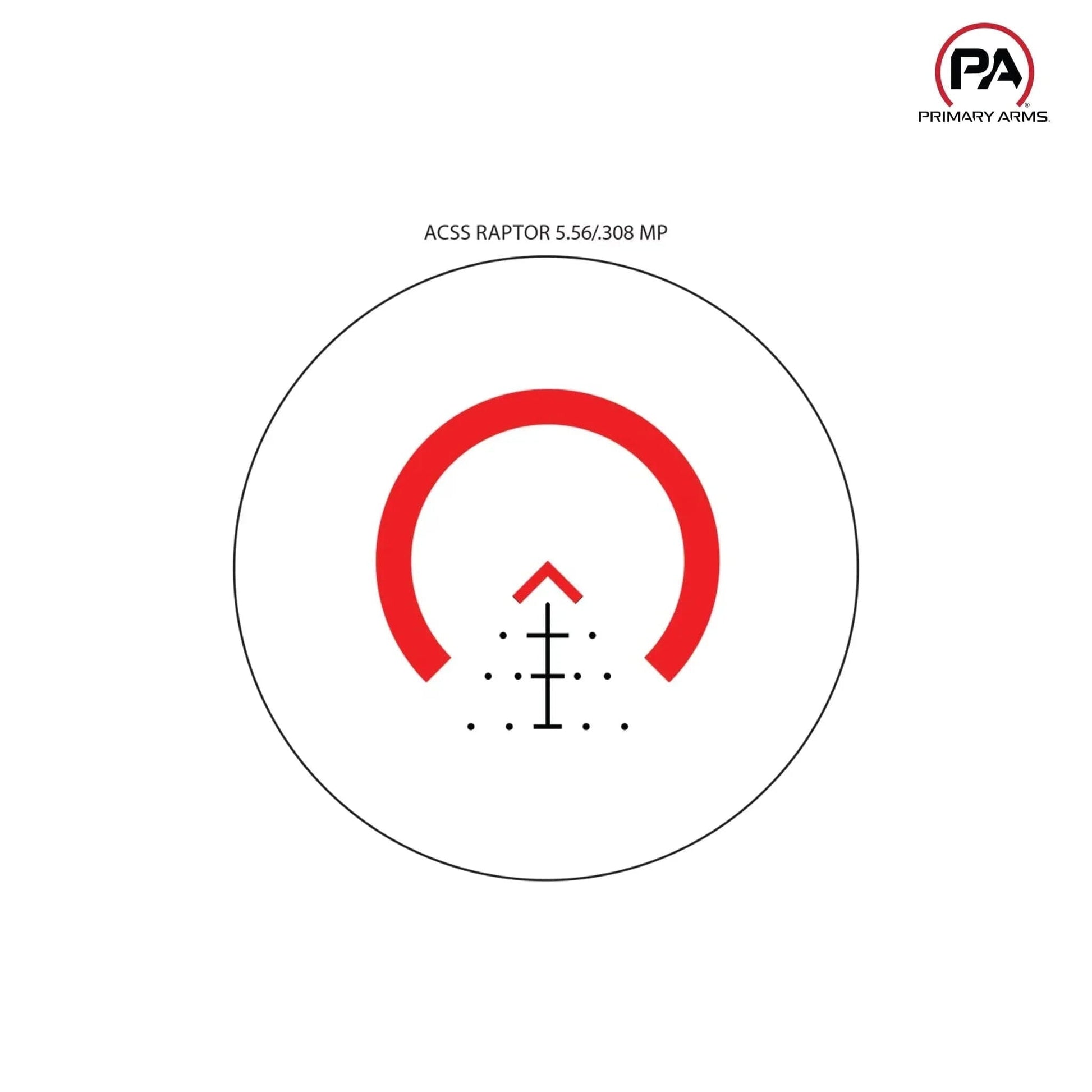

- ACSS Raptor 5.56/.308 Meter Reticle – First-focal-plane MRAD reticle calibrated in meters (50–600 m) with integrated ranging stadia, wind-age brackets, moving-target leads, and hold-over hashmarks; red fiber-optic illumination with 13 brightness settings plus 3 NV-compatible modes and AutoLive® motion-sensing on/off technology.
- True 3× Prism Design – Dedicated 3× magnification prism optic provides enhanced mid-range identification while maintaining unlimited eye relief and minimal parallax.
- Premium Fully Multi-Coated Optics – Japanese extra-low dispersion lenses with full multi-coating deliver exceptional light transmission, crisp contrast, and edge-to-edge clarity in all lighting conditions.
- SOS® Steel-on-Steel Turrets – Exposed, capped turrets with tactile 0.25 MOA clicks; 80 MOA total windage & elevation adjustment for precise zeroing and dialing.
- Side Parallax Focus – Fixed at 3× magnification, no user adjustment required.
- Compact & Rugged Chassis – CNC-machined 30 mm 6061-T6 aluminum tube in matte-black Type III hard-anodize; O-ring sealed and nitrogen-purged for IP67 waterproofing and fog-proof performance.
- Generous Eye Relief & Wide FOV – 2.70 in of eye relief and a 38 ft @ 100 yd field of view for rapid target acquisition in CQB scenarios.
Technical Specifications for Primary Arms SLx 3× MicroPrism Scope - Red ACSS Raptor 5.56/.308 Meter Reticle - Black
|
Specification |
Details |
|
Manufacturer |
Primary Arms |
|
Model / Part Number |
SLx 3× MicroPrism / PA-SLX-3XMP-RAPTOR-5MP |
|
SKU / MPN |
PA-SLX-3XMP-RAPTOR-5MP / 710038 |
|
UPC |
818500015796 |
|
Magnification |
Fixed 3× |
|
Objective Lens Diameter |
20 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
ACSS Raptor 5.56/.308 Meter (FFP), fiber-optic illuminated |
|
Illumination |
13 settings + 3 NV; AutoLive® motion-sensing on/off |
|
Field of View |
38 ft @ 100 yd |
|
Eye Relief |
2.70 in (68.6 mm) |
|
Exit Pupil |
6.7 mm |
|
Diopter Adjustment |
–4 to +2 dpt |
|
Elevation Total Adjustment |
80 MOA |
|
Windage Total Adjustment |
80 MOA |
|
Click Value |
0.25 MOA per click |
|
Parallax |
Fixed |
|
Length |
2.95 in (75 mm) |
|
Weight |
< 7.95 oz (225 g) |
|
Finish |
Matte-black Type III hard-anodize |
|
Waterproof / Fog-Proof |
IP67 (1 m submersion; fog-proof) |
|
Warranty |
Lifetime warranty |
Included Accessories
- Flip-up lens covers
- Lens cleaning cloth
- Instruction manual & warranty documentation
