Tangent Theta

Tangent Theta TT525P 5-25x56 Riflescope - JTAC Reticle - Coyote Brown

Tangent Theta TT525P 5-25x56 Riflescope - JTAC Reticle - Coyote Brown

Regular price $6,491.00 USD
Regular price Sale price $6,491.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Tangent Theta TT525P 5‑25×56 Riflescope - JTAC Reticle - Coyote Brown

Features

  • JTAC™ First‑Focal‑Plane Reticle – Military‑grade JTAC reticle calibrated in MIL with integrated range‑finding stadia and hold‑over hashes, accurate at any magnification.
  • Premium Low‑Light Optics – Fully multi‑coated high‑definition glass with a 56 mm objective delivers exceptional light transmission, contrast, and edge‑to‑edge clarity in dawn/dusk conditions.
  • Exposed Locking Turrets with Zero‑Stop – Machined elevation and windage turrets lock to prevent accidental adjustments; mechanical zero‑stop allows instant return to zero, and turrets can be re‑indexed without tools.
  • Tool‑Less Re‑Indexing – Elevation turret may be lifted and rotated after sight‑in to restore zeroed markings without disassembly or tools.
  • Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring a crisp reticle image at all ranges.
  • Robust 34 mm Chassis – One‑piece aircraft‑grade aluminum tube in coyote brown Type II hard‑anodized finish; full O‑ring sealing and nitrogen purging for IPX7 waterproofing and fog‑proof reliability.
  • Versatile 5×–25× Magnification – Wide zoom range suited to rapid target acquisition and long‑range precision engagements.

Technical Specifications for Tangent Theta TT525P 5‑25×56 Riflescope - JTAC Reticle - Coyote Brown

Specification

Details

Manufacturer

Tangent Theta (Armament Technology, Canada)

Model / Part Number

TT525P – JTAC / 800100‑0510

SKU / MPN

800100‑0510

UPC

666595531376

Magnification Range

5 × – 25 ×

Objective Lens Diameter

56 mm

Tube Diameter

34 mm

Reticle

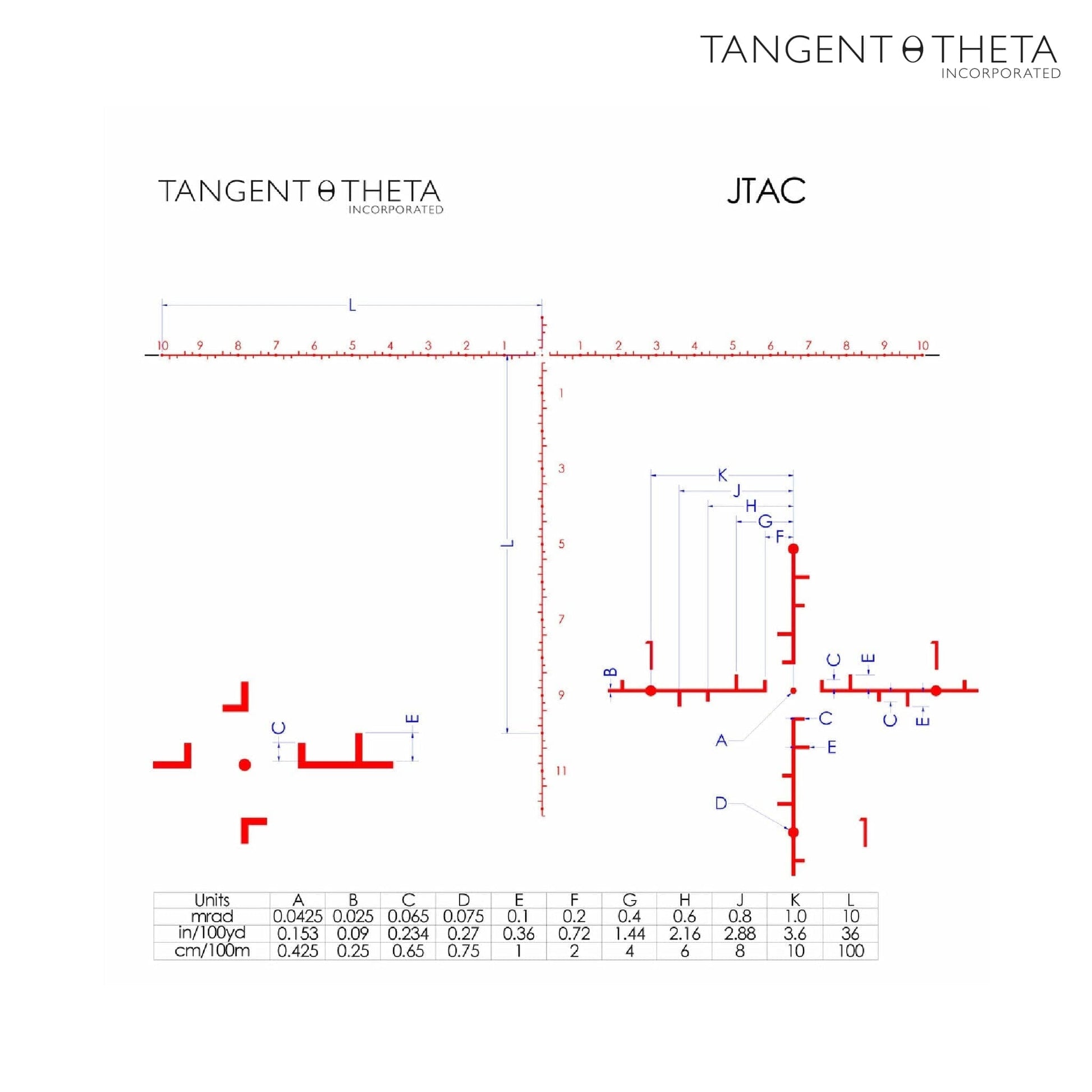

First‑Focal‑Plane JTAC, illuminated (11 levels; 6 h auto‑off)

Field of View

4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m)

Eye Relief

90 mm

Exit Pupil

11 mm @ 5×; 2.3 mm @ 25×

Diopter Range

–3 to +2.5

Elevation Total Adjustment

10 mrad (34.4 MOA)

Windage Total Adjustment

± 5 mrad (± 17.2 MOA)

Adjustment Resolution

0.1 mrad per click

Parallax Adjustment

Side focus, 50 m to ∞

Length

425 mm (16.7 in)

Weight

1,150 g (40.6 oz)

Finish

Coyote Brown Type II hard‑anodize

Waterproof / Fogproof

IPX7 (1 m submersion for 30 min); nitrogen‑purged

Warranty

Lifetime warranty

Included Accessories

  • Coyote Brown flip‑up lens covers
  • Instruction manual & warranty documentation

SEO Keywords
Tangent Theta TT525P JTAC, 5–25×56 mm riflescope, JTAC reticle scope, tactical zero‑stop optic, side‑focus precision scope.
